Gecko in Al Haray Reed Bed +
Gecko in Al Hary Reed Bed
Everybody only asks about rats and snakes in reed beds, please do not forget this small guy.
Impressions of Doha North STP TSE Lagoon in the Autumn +
Impressions of Doha North STP TSE Lagoon in the autums
Now is the perfect time to sit in the Gazebos, relax an ejoy the flowering reeds rustling in the wind. The fish stock developed during the summer and when feeded swarms of fish coming to the shore
Al Haray is flowering +
Al Haray is flowering

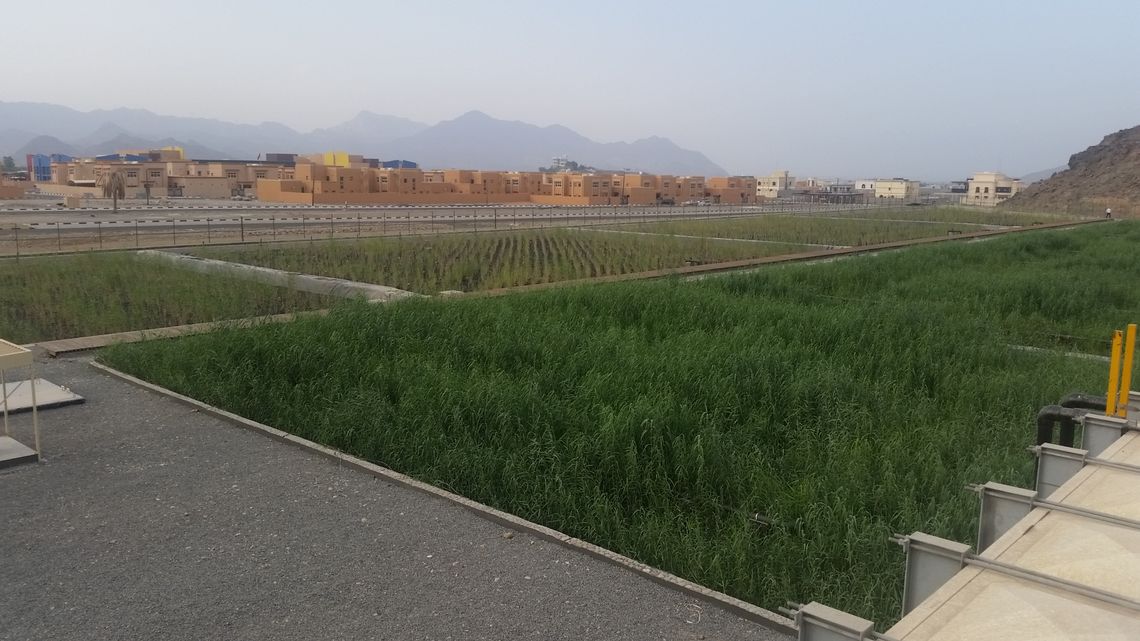

In early December Al Haray is flowering, Stage A (front) with the more nutrients even more than Stage B (back)
Reed Bed for Kalba Wildlife Center +
Reed Bed for Kalba Wildlife Center
A reed bed is under construction for the Kalba Wildlife Center.
Designed in cooperation with Blumberg- engineers as spezialized sub-consultant for Mott Mac Donald.
Reed Bed is designed as single stage vertical flow reed bed split into 2 basins with a 3 chamber septic tank as pre-treatment.

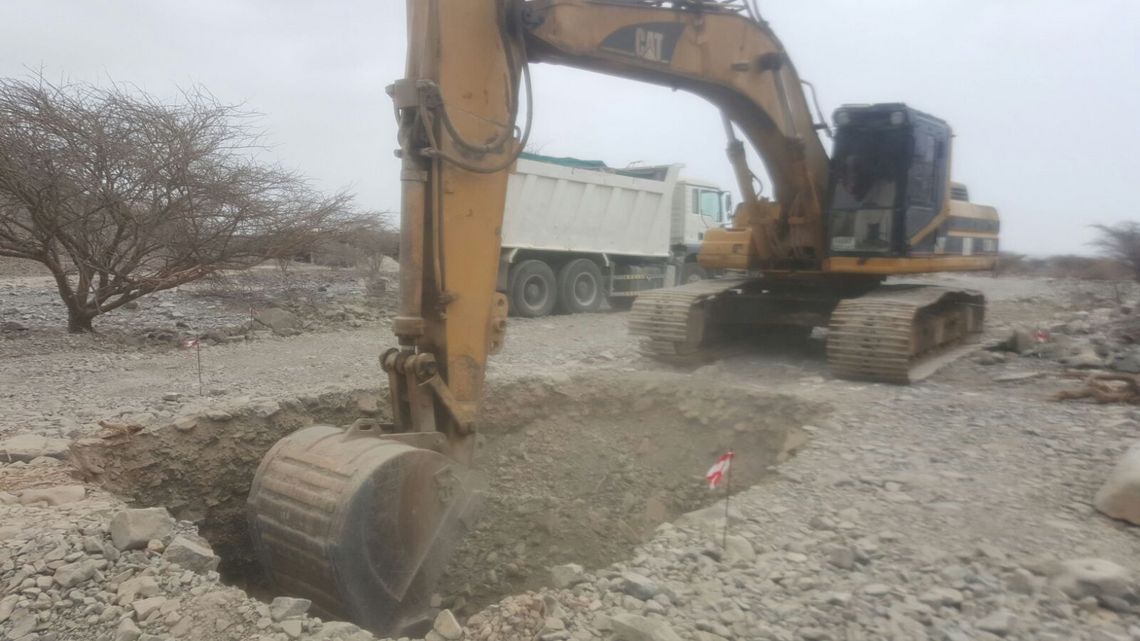

Kalba Reed Bed excavation
Compacted reed bed basins

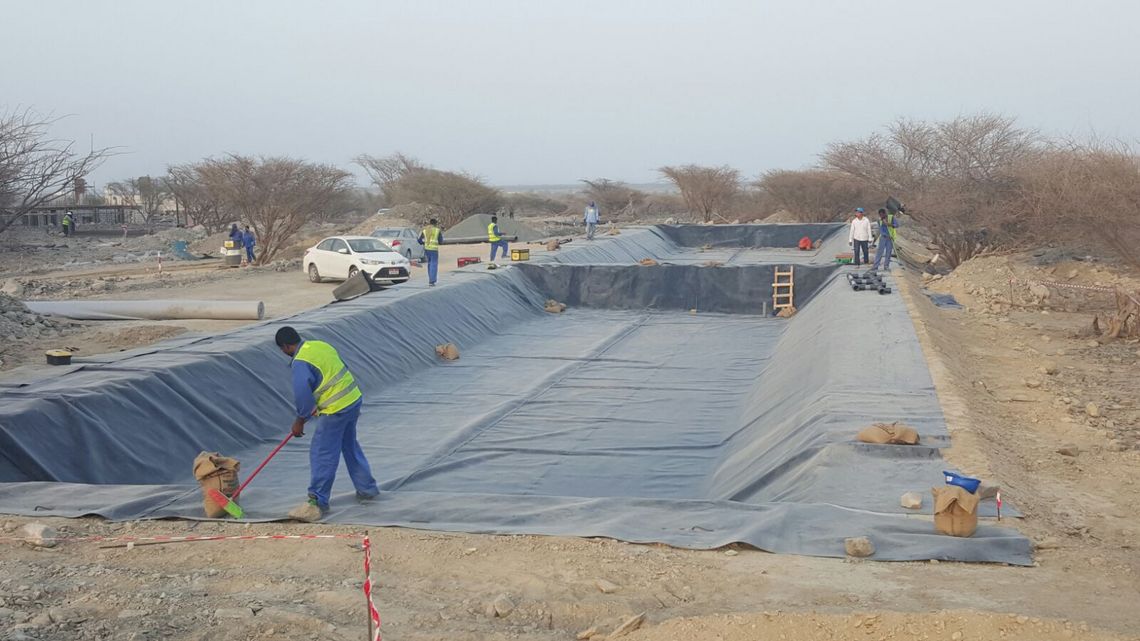

Installation of liner

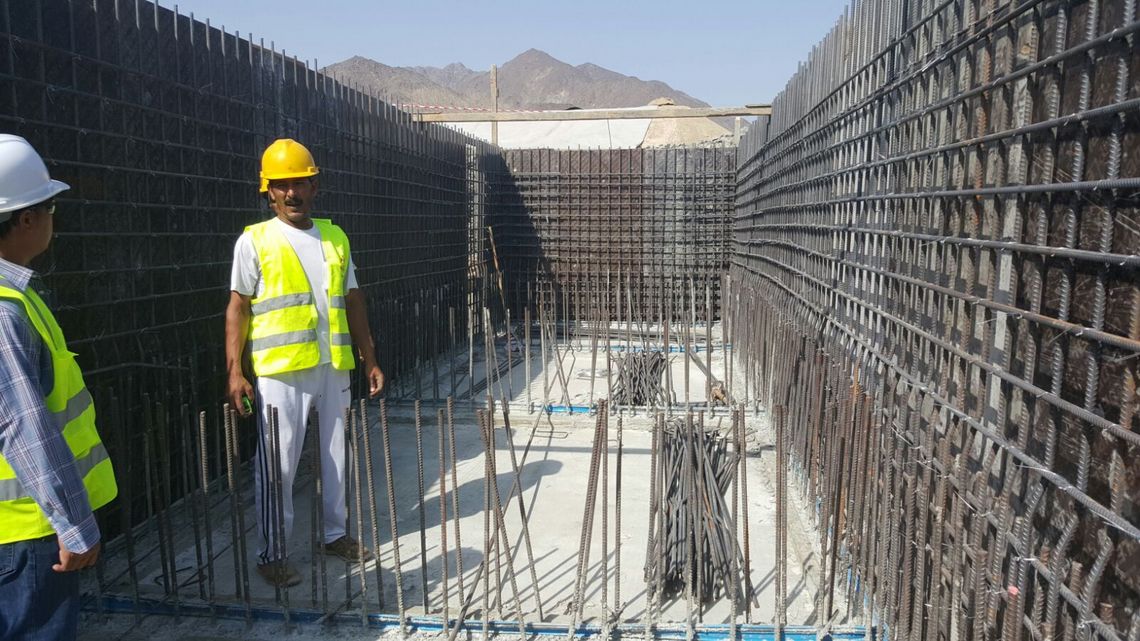

Reinforcement work of septic tank
Al Hamra Reed Bed +
TSE water getting reused for construction

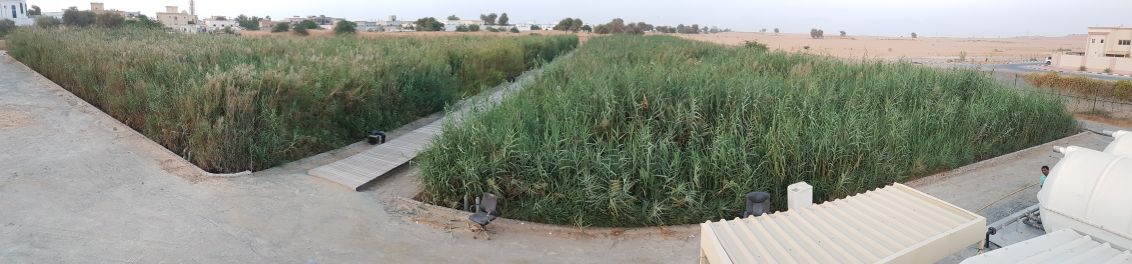

Al Hamra 2015
Al Haray Reed Bed +
Al Haray 2015
In- and Outflow +

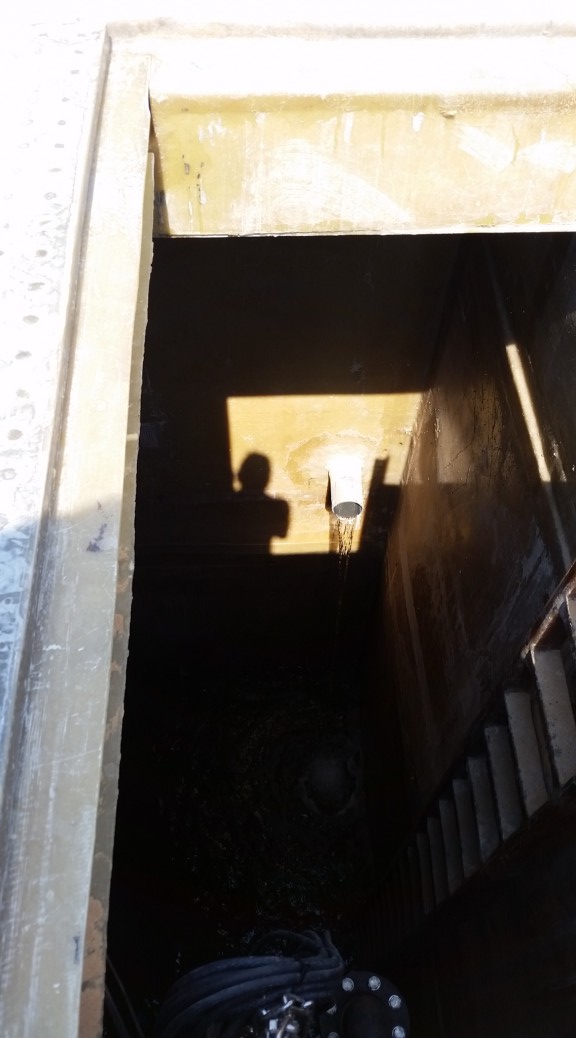

Outflow of Al Hamra Reed Bed
Inflow of Al Hamra Reed Bed
Sir Bani Yas Island Reed Beds +

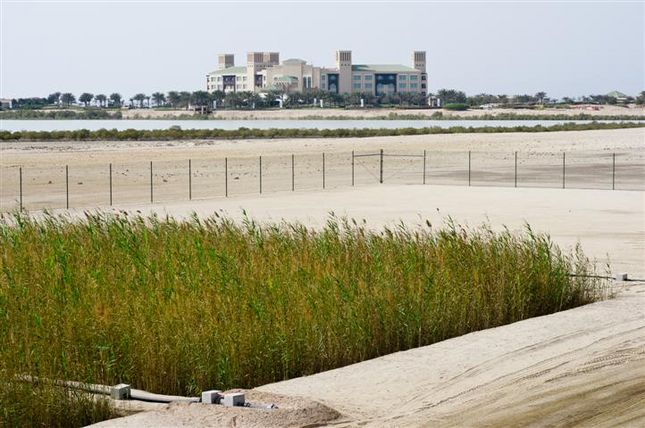

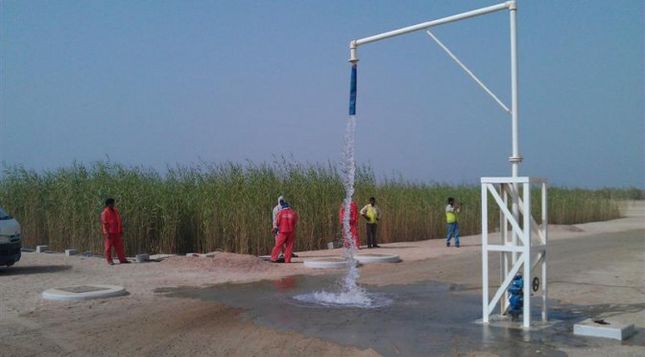

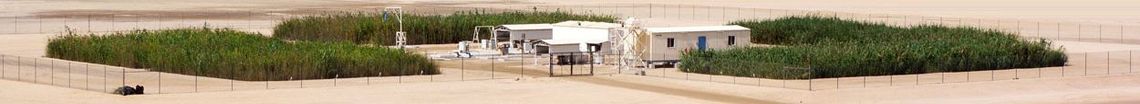

On Sir Bani Yas island two reed beds desinged by Mizan Consult as spezialised sub-consultant for Parsons and build by Hilalco are under operation since 2012. One is treating the sewage from the Anantara Hotel
The second reed bed is treating the sewage from Al Sahel villas:
Al Haray TSE Discharge +
Al Haray TSE discharge

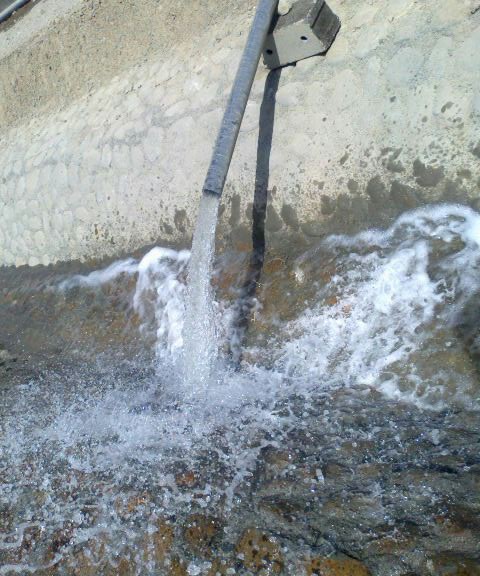

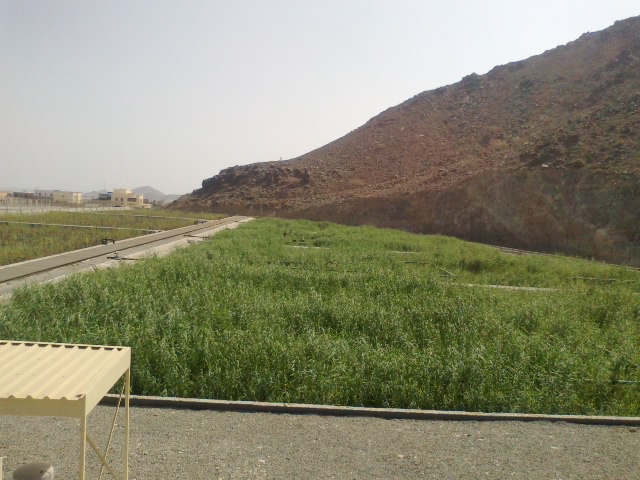

In Al Haray the first TSE is discharged into the drain channel.
Al Hamra Reeds growing +
Al Hamra Reeds growing
Sludge dewatering Reed Beds U.A.E. +
Sludge dewatering Reed Beds U.A.E.

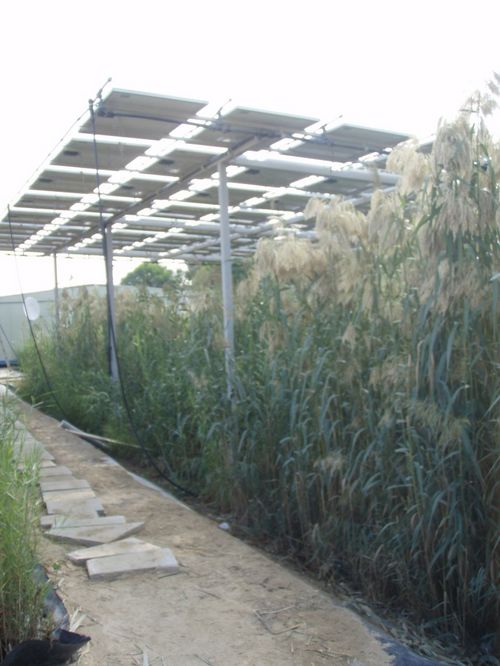

Sludge dewatering reed bed in Al Khor industrial area Dubai, 2007 – 2012. The reed bed was used to dewater and mineralize the septic sludge from a labour camp. Solar panels were installed above the reed bed. Outflow water from the reed bed was used to spray the solar panels for cooling and cleaning.
Sludge dewatering Reeds Beds Jordan +
Sludge dewatering Reed Beds Jordan
For the Bauer-Group Mizanconsult did the design and construction supervision of 4 test sludge dewatering reed beds in As Slat, Jordan.
4 conventional drying beds were converted into sludge dewatering reed beds.
Sludge dewatering Reed Bed Bahrain +
Sludge dewatering Reed Bed Bahrain
Sludge dewatering Reed Bed Oman +
Sludge dewatering Reed Bed Oman
Sludge Dewatering Reed Bed for the Six Senses Resort in Zighy Bay, Oman.
The reed beds mineralizing the surplus sludge from a conventional activated sludge process plant. The reed beds are located on the beach next to the tennis court.
Advantages:
- No sludge disposal by tankers
- No chemical additives
- Energy use only for pumping
- Easy operation
- Sludge removal only every 4- 7 years
- Reed Beds were used as tertiary treatment step during start-up
Sludge Reed Bed Qatar +
Sludge Reed Bed in Qatar
Sludge dewatering reed beds in Qatar, Al Sahara Sand Plant. The reed beds dewatering the surplus sludge of a waste water treatment plant, SBR-Reactor (4000 m³/day).
The Advantages are:
- The sludge get mineralized (DS > 40%)
- No energy or chemcial additives are required
- Mineralized sludge removal only every 4-7 years
- The final product can be used as fertilizer
Nimr Reed Bed +
Nimr Reed Bed
This is the result, 2015
Al Hamra Reed Bed, Plants developing fast +
Al Hamra Reed Bed, plants developing fast
Stage A distribution pipes already covered
Al Hamra Reed Bed under Operation +
Al Hamra Reed Bed under Operation
Al Hamra reed bed under operation, up to 10 tankers per day discharging into the system.
Al Haray Reed Bed receiving daily sewage tankers +
Al Haray Reed Bed receiving daily sewage tankers
The daliy load of sewage to Al Haray reed bed was increased from 4 to 12 tankers per day
Al Hamra Reed Bed getting Green +
Al Hamra Reed Bed getting green
The reed plants getting taler and start to grow horizontal offshoots
Al Haray Reed Bed started +
Al Haray Reed Bed

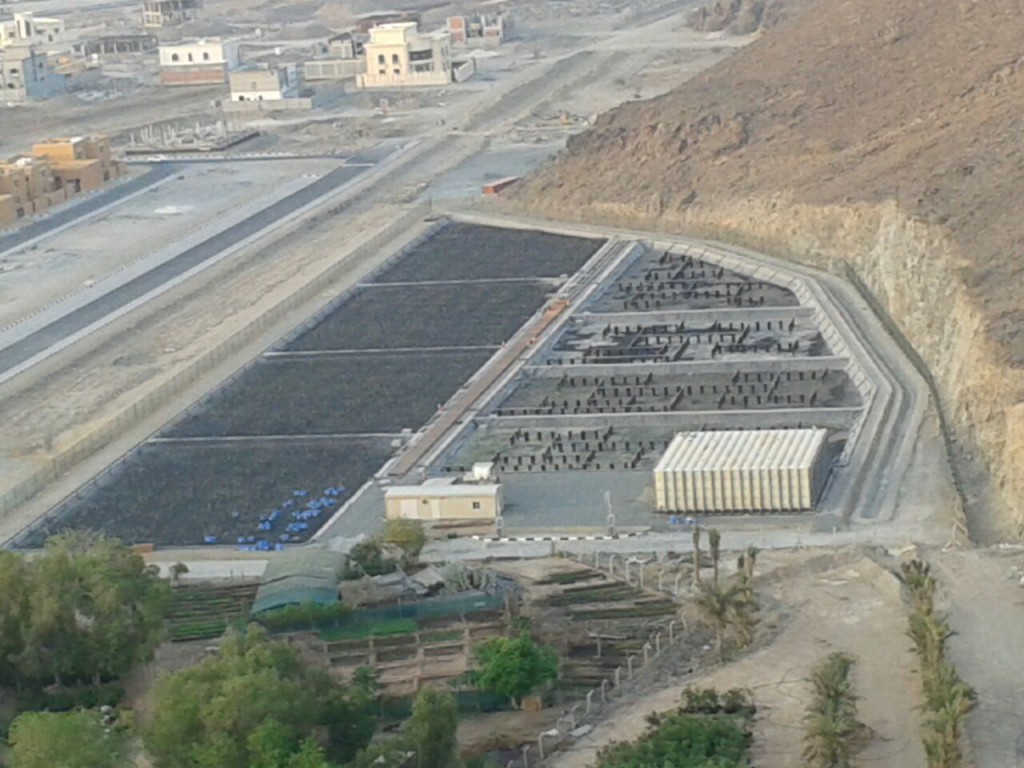

Al Haray reed bed started operation, in a few month it will be all green
Doha North Pond overview +
Doha North pond overview
Students visiting Al Hamra Reed Bed +
Students visiting Al Hamra Reed Bed
Students from Dubai college visiting the Al Hamra reed bed
Mr. Stan Wehbe from RBC, the contractor and operator of the reed beds, is explaning the process of mineralization in the Stage A basins. Mr. Osman Ali, RE from KN-International, the design and supervision consultant, explaning the process flow.
Reeds in the wind +
Reed in the Wind
Koi Carps swimming in TSE +
Koi Carps swimming in TSE
Still the water is cristal clear and Koi carps were released into the lagoon.
Al Hamra Reed Bed testing +
Al Hamra Reed Bed testing
The Al Hamra Reed Bed is under start-up process since March 2015.
Doha North STP TSE Lagoon +
Doha North STP TSE Lagoon

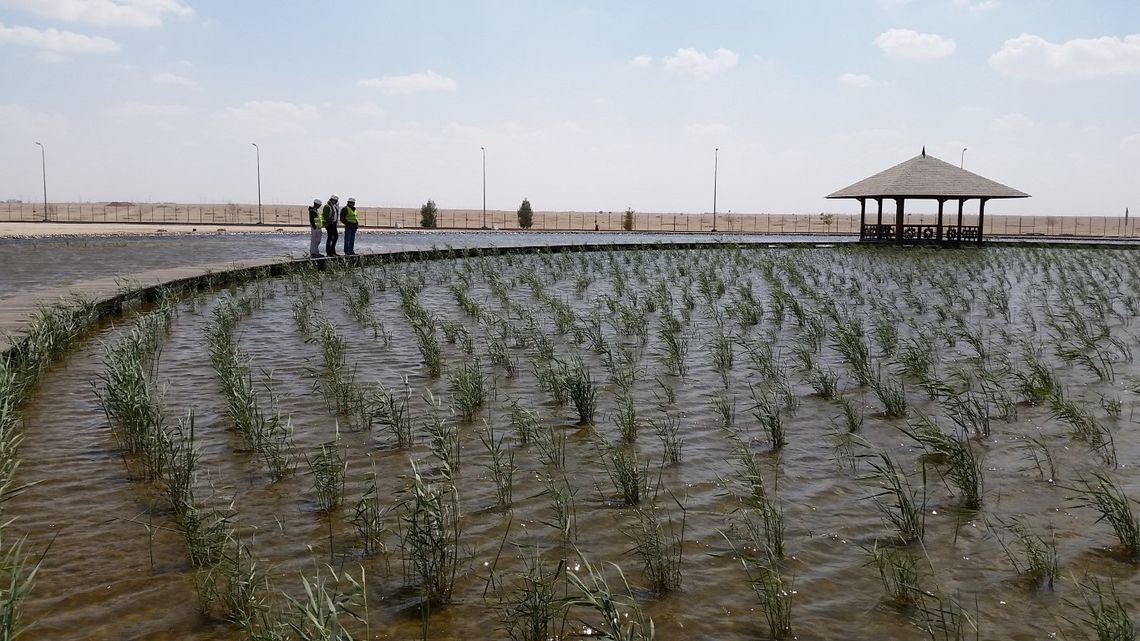

20,000 m² of TSE lagoon with natural reed bed filtration started operation on March 2015.
Reed Beds under Power Lines +
Reed Beds under Power Lines

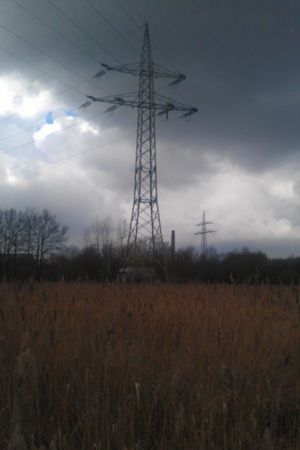

The empty space below high voltage power lines is an ideal area for reed beds.
This picture was taken in Herford, Germany.
Latest analyses Reed Beds Sir Bani Island +
Latest analyses Reed Beds Sir Bani Yas Island
The operating company EMIRATES LINK NITCO LLC. submitted us the latest test results from the reed beds on Sir Bani Yas Island
“Please find attached the effluent quality of the reed bed which are fairly good and consistent”
Reed Beds for public Housing in the U.A.E. +
Reed Beds for public housing in the U.A.E.
The U.A.E. Ministry of Public Works will build reed bed treatment systems to treat and recycle the waste water from two housing projects in the Northern Emirates. Design, tender and construction supervision by KN-International. Execution started in February 2014. These sustainable systems will work with lowest energy consumption and maintenance for the next decades and will add to the green initiative of the U.A.E..
Al Hamra in Climax condition +
Al Hamra in Climax condition
After 3 years of operation the reed bed reaches its climax condition
Quriyat Pilot under operation +

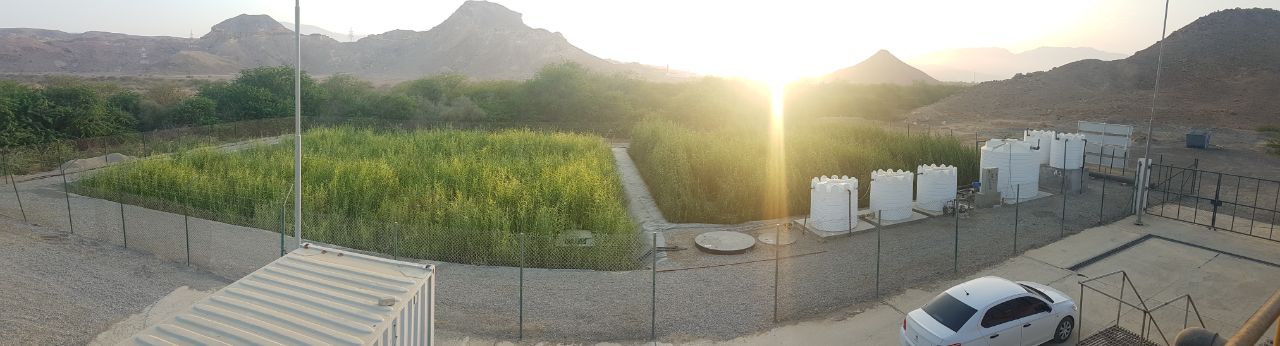

Quriyat Pilot under operation
After 6 month of operation
